1. The process of production of belt conveyor roller idler
2. The product description of Conveyor Roller
| Roller Type | Carrying,Impact,Return,Friction,Tapered,Guide,Spiral,Comb and so on |
| Material | Carbon steel, stainless steel,nylon,plastic,ceramic,hdpe, uhmw-pe |
| Usage | Used in coal,mine,steel,cement,harbor,crusher heavy industry |
| Roller Feature | Low vibration, low noise Reduced power consumption (to start and run the conveyor) Min 30,000 hours standard life time |
| standard set of tests | Load capacity tests Wear tests Sealing against dust and water tests Start and run resistance tests |
Idler Roller Components:
1. Roller Shell (Steel Tube)
We will use tube speciall for roller,compared with ordinary steel tube, in the following aspects, it has great advantages which can make the roller have minimum radial play eccentricity
| Items | Ordinary steel tube | Tube specially for roller |
| Outside diameter tolerance | ± 0.8mm | ± 0.3mm |
| Wall thickness tolerance | ± 0.38mm | ± 0.1mm |
| Bending degree | ≤ 1.5mm/m | ≤ 0.5mm/m |
| Ovality | ≤ 0.6 | ≤ 0.15 |
| Height of inner bur | +0.5~ -0.2 | 0 |
Comparasion with other supplier's steel tube (the left one is ours)
2. Shaft
We use high precision cold-drawn steel which has high brightness and little tolerance
3.Bearing
a.We use deep groove ball bearing with big clearance, it’s C3,C4. And this clearance can make rollers revolve flexibly.
b. Bearing type is 2RZ and 2RS with oil seal which have advantage in dust proof.
c. Material: Bearing Steel
d.Specification: 6204/6205/6206/6305/6306/6307/6308/6309/6310
4.Bearing Housing and Seals
1. Type: DTII, TD75, TK contact and labyrinth seals, TK labyrinth, TKII
2. Bearing Housing material: 08 F with high tensile strength,high hardness,good toughness and easy to be welded and punched not easy to crack
3. For seals, the material we can provide has ABS resin, Nylon, Hdpe, Polyurethane, polyformaldehyde and so on
And it has great advantage in dust proof, water proof which can be used in harsh working conditions
We will make play radial eccentricity test for rollers before delivering out from our company
Our Promise: Within two years, if there's any quality problems, we can exchange new one for free and we will pay all the freight charge.
3.Our services
· Professonal & Passion Sales team 24 hours at your service
· Participating in the various exhibitions help you to know us more completely
· sample could be sent in 1-2 days
· OEM of customized products / logo / brand / packing is accepted
· small qty accepted & quick delivery
· our own Product Development Team will regularly update new products.
· Product diversification for your choice
· Factory sale directly with professional sale team
· For Best price High quality and favorable service
· Express service for some urgent delivery orders to meet customer request.
4.About us
Founded in Sep.1936,with a total area of 8000 square meters, technicians.we are
specialized in Conveyor Roller ,Conveyor Pulley,Conveyor Impact Bar/cradle,Conveyor Belt,Conveyor Belt Clean,Deep Groove Ball Bearing.
variety of product categories, reliable product quality and firstclass
service are approved by our customers.
We will continue to implement the enterprise guilding principles”the
quality first,the customers first ”,constant technological innovation ,more innovative,high-quality products
and good service,flexible and varied business practice to win more customers.
5.
Product Tags:
|
|

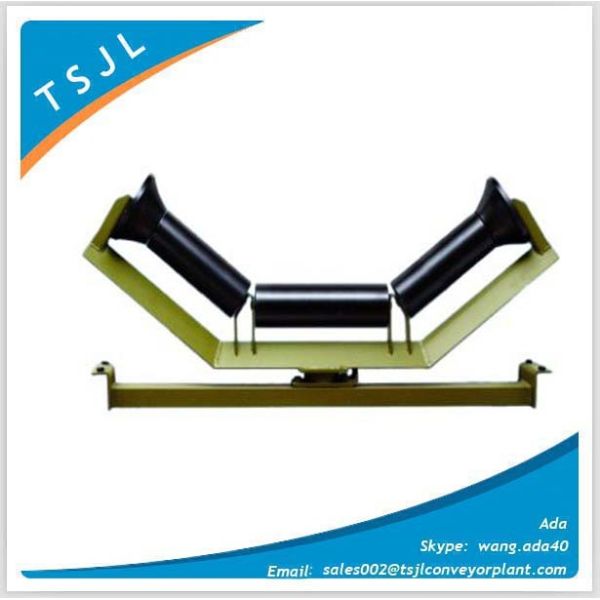

Ariction Aligning Troughed Idlers Images
|
